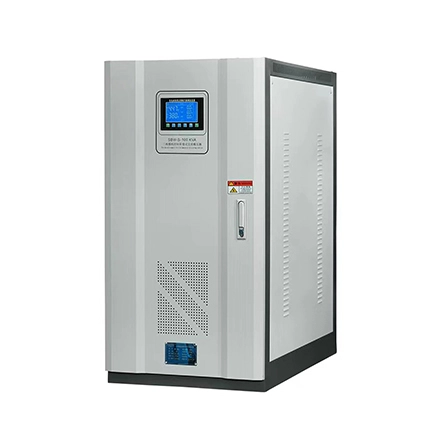

SBW-F Series Three-Phase Split Automatic Compensation Power Regulator

BW-F series three-phase split automatic electric power regulator is improved by SBW series products. Suitable for the three-phase voltage input imbalance, when the power grid fluctuations or load current change voltage, the three-phase output can automatically balance, and keep the voltage regulation stable advantages.


Specification of SBW-F Series Three-Phase Split Automatic Automatic Compensation Power Regulator

PerformanceTechnical Parameters
Input VoltageSingle-phase 2 20V 20% or 2 20V + 30% (order instructions) three-phase line phase voltage, 2 20V 20% cut voltage 380V ± 20% or phase voltage, 220V ± 30%4S, 380V ± 30% (description)
Output VoltageSingle-phase voltage 220V three-phase voltage line voltage 380V
Given Accuracy1-5% (adjustable) frequency: 50Hz / 60Hz
Efficiency395% (Power level above 50kV)
Speed Of ResponseW1.5S (When the external voltage changes by 10%)
Ambient Temperature-51℃+40℃
Insulation ResistanceN1MQ
Electrical StrengthPower frequency sinusoidal voltage 2000V lasts for one minute without breakdown and flashover phenomenon
Overload CapacityTwice the rated current, maintained for 1 minute
Waveform DistortionNo additional waveform distortion is found
DefenciveWith overvoltage, overcurrent, phase deficiency, phase sequence protection and mechanical fault protection
