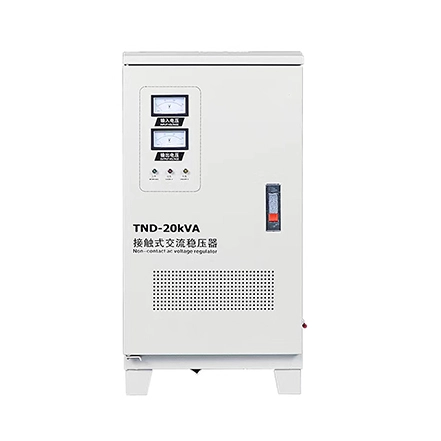

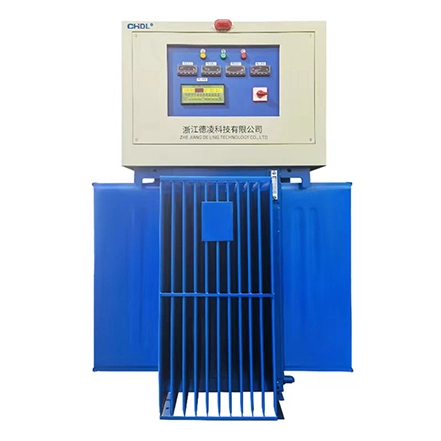

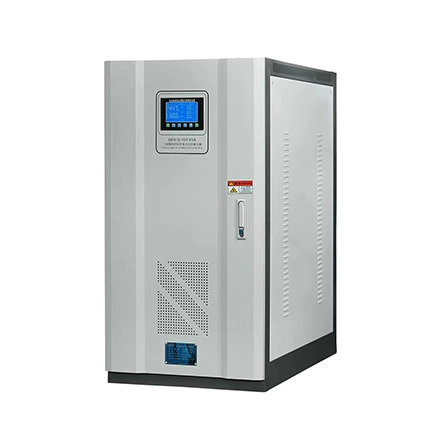

DBW/SBW Single And Three-Phase Fully Automatic Electric Power Regulator

DBW, SBW series single and three-phase automatic compensation power regulator is designed for the AC voltage, when the external power supply network voltage fluctuation or load changes caused by voltage fluctuation, can automatically keep the stability of the voltage.



Specification of DBW/SBW Single And Three-Phase Fully Automatic Electric Power Regulator

PerformanceTechnical Parameters
Input VoltageSingle-phase 2 20V 20% or 2 20V + 30% (order instructions) three-phase line phase voltage, 2 20V 20% cut voltage 380V ± 20% or phase voltage, 220V ± 30%4S, 380V ± 30% (description)
Output VoltageSingle-phase voltage 220V three-phase voltage line voltage 380V
Given Accuracy1-5% (adjustable) frequency: 50Hz / 60Hz
Efficiency395% (Power level above 50kV)
Speed Of ResponseW1.5S (When the external voltage changes by 10%)
Ambient Temperature-51℃+40℃
Insulation ResistanceN1MQ
Electrical StrengthPower frequency sinusoidal voltage 2000V lasts for one minute without breakdown and flashover phenomenon
Overload CapacityTwice the rated current, maintained for 1 minute
Waveform DistortionNo additional waveform distortion is found
DefenciveWith overvoltage, overcurrent, phase deficiency, phase sequence protection and mechanical fault protection
