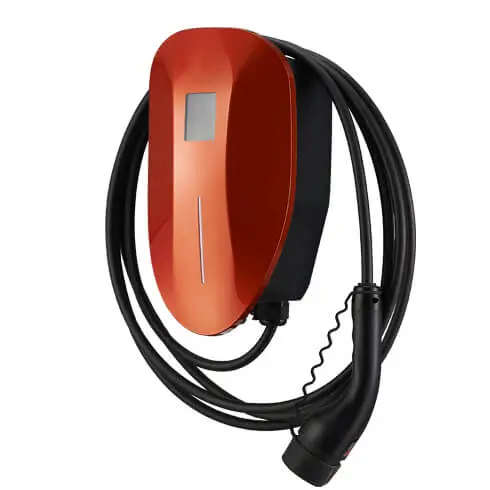

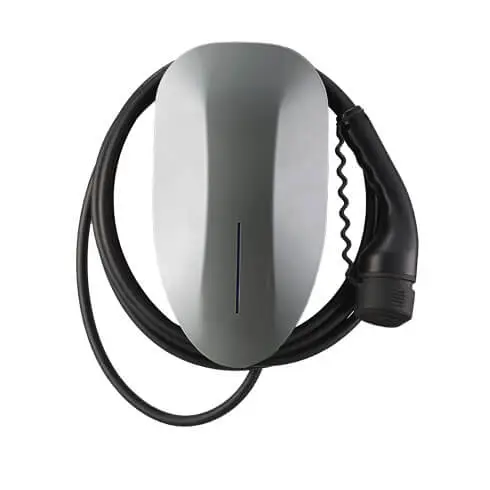

22KW AC EV Charger Tethered Wallbox
RELIGARE 22KW AC EV charger tethered wall box, simple but very safe. Just Plug and Play only requires the user to plug in the gun to start charging and unplug it to stop. We guarantee its safety and simplicity so that you can fully enjoy your charging experience without other measures.
Specification of 22KW AC EV Charger Tethered Wallbox
| Dimension (mm) | 360mm (L)* 193mm (W) *170mm (H) |
| Color | Matte black, pearly white, red, blue, metallic gray |
| HMI | Screen (optional) |
| AC Power | AC 400V (three phases) |
| Rated Current | 32A |
| Charging Power | 22KW |
| Connector Type | Type 2 / IEC 62196-2 / Europe Standard |
| Working Condition | Elevation：≤2000m; Temperature：-20℃~+50℃ |
| Charging Mode | Plug and charge (RFID, WIFI-APP, and OCPP are optional) |
| Protection Function | Overvoltage, under voltage, overcurrent, short circuit, leakage, etc. |
| Cable Length | 5m (optional) |
| Protection Level | IP55 |

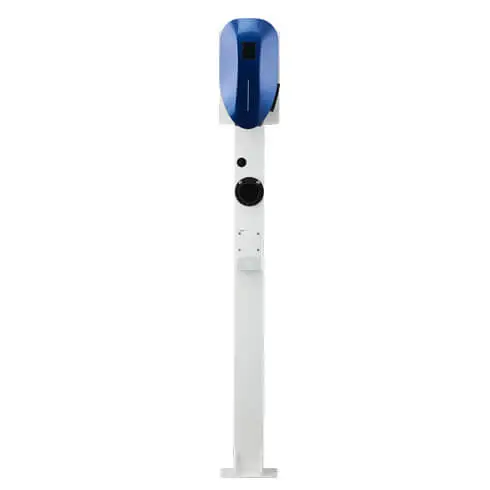

| Installation | Wall-mounted or floor-mounted installation |
Highlight Of 22KW AC EV Charger Tethered Wallbox
With the benefits of DLB, the LIA 22KW AC EV charger tethered wall box helps to optimize the household power load management, by monitoring the instant power consumption of the house system, and automatically adjusting its output charging power, both power increase and decrease. It will contain the total power consumption below the max capacity of the main system load, and avoid the unexpected tripping of the main circuit breaker due to overload.
With the Built-in type B RCD, LIA 22KW AC EV charger tethered wall box can offer Overvoltage Protection, Under Voltage Protection, Overload Protection, Short Circuit Protection, Earth leakage Protection, Ground Protection, Over-temp Protection and etc.
