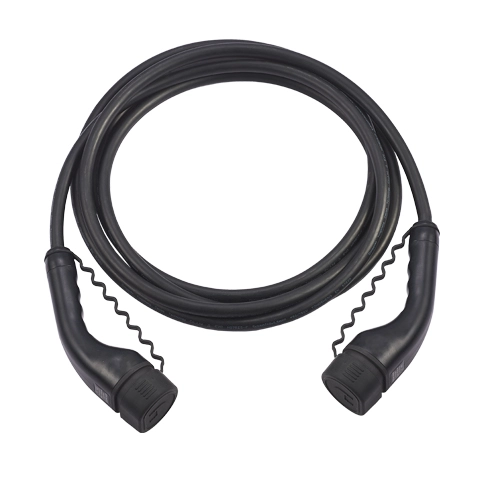

  • type 2 to type 3 charging cable
  • type 2 to type 2 ev cable
  • type 2 to type 2 ev charging cable
  • type 2 to type 3 charging cable

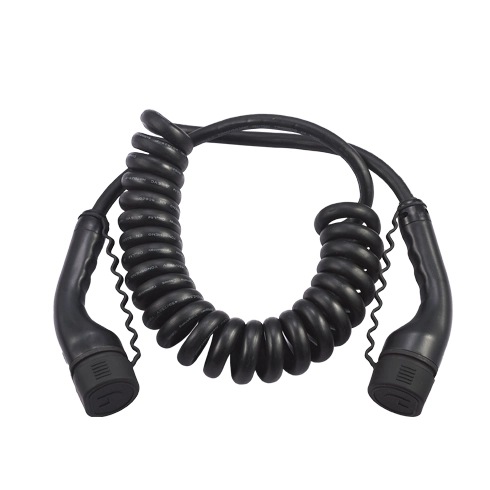

7.2KW Type 2 To Type 2 EV Charging Cable

Religare 7.2KW Type 2 To Type 2 EV Charging Cable material is TPU, the best material in the market.at present, conforms to the latest European Union standards, lighter and thinner, long-time durability, and low-temperature resistance.

Specification of 7.2KW Type 2 To Type 2 EV Charging Cable

ColorBlack/white/red/blue/gray
Rated Current32A
Rated VoltageAC 240V (single phase)
Charging Power7.2KW
Mechanical Lifeunload plug & off >10000 times
Working Temperature-30℃~65℃
Impact Resistance1m height drop and 2 Tons vehicle run-over pressure
Insulation Resistance>1000MΩ
Contact Resistance0.5MΩ MAX
Protection ClassIP54
Contact PinAluminum alloy, silver-plated surface, insulated top
Shell MaterialThermoplastic (flame retardant rating V-0)
Cable Length5m (Length is optional, Straight line or Spring line is optional)


Highlight Of 7.2KW Type 2 To Type 2 EV Charging Cable

  1. We have used our extensive experience to ensure that our cables provide the best possible user experience in all conditions. While other cables become stiff in winter, LIA cables remain soft and flexible even in severe cold. Our cap and terminals are designed to withstand moisture and heat.


  2. LIA 7.2KW Type 2 To Type 2 EV Charging Cables are designed to be recyclable. In addition to only using recyclable materials, this is achieved by not using so-called potting in our connectors. Potting is a technique for water- and impact-proofing that involves filling electronic products with plastic, rubber, or resin compound. This creates additional waste and makes it hard to separate out components and materials for reuse and recycling later.
