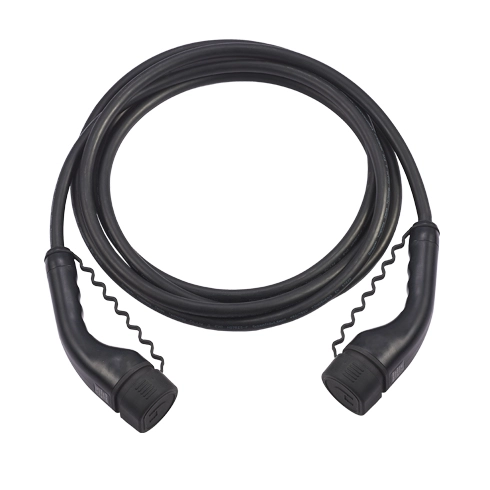

22KW Type 2 To Type 2 EV Charging Cable

Keep your electric vehicle's battery powered with this Religare 22KW Type 2 To Type 2 EV charging cable from Religare Electric. It's suitable to use for the AC charging of electric vehicles from all manufacturers. As it's portable, you can conveniently keep it in your car to use when you need it.


The cable has a charging power of up to 22kW to ensure your battery is fully charged. With up to 10 thousand insertion and withdrawal cycles, it's a long-lasting option. Flexibility comes courtesy of a large bending radius of 255mm.


With a cable length of 5 meters, there's no need for you to locate your vehicle directly next to a power outlet. Plug caps protect the unit's connectors when it's not in use, so you can safely use them in contaminated environments without loss of performance.

Specification of 22KW Type 2 To Type 2 EV Charging Cable

ColorBlack/white/red/blue/gray
Rated Current32A
Rated VoltageAC 400V (three phases)
Charging Power22KW
Mechanical Lifeunload plug & off >10000 times
Working Temperature-30℃~65℃
Impact Resistance1m height drop and 2 Tons vehicle run-over pressure
Insulation Resistance>1000MΩ
Contact Resistance0.5MΩ MAX
Protection ClassIP54
Contact PinAluminum alloy, silver-plated surface, insulated top
Shell MaterialThermoplastic (flame retardant rating V-0)
Cable Length5m (Length is optional)



Highlight Of 22KW Type 2 To Type 2 EV Charging Cable

  1. Made of environmental TPI material.


  2. Had passed CE certification.


  3. Make your car fully charged within one hour.


  4. Multiple choice for specialized color.
